5727 La Mirada

Located in the heart of the Hollywood revitalization, this 28-unit modern features striking clean lines, splashes of color from sustainable low-water planters, and masterful wooden accents. This stunningly designed building is located in the heart of the entertainment industry, near major industry offices like Netflix, Sunset Bronson Studios and legendary Paramount Studios. The explosion of bars, restaurants, and nightlife is just out of the doorway, as is easy and quick access to public transit.

Mirada_003
Location
Year
Capacity
Hollywood, CA
2019
29 units
Developer & Construction Management
5727_LaMirada-4

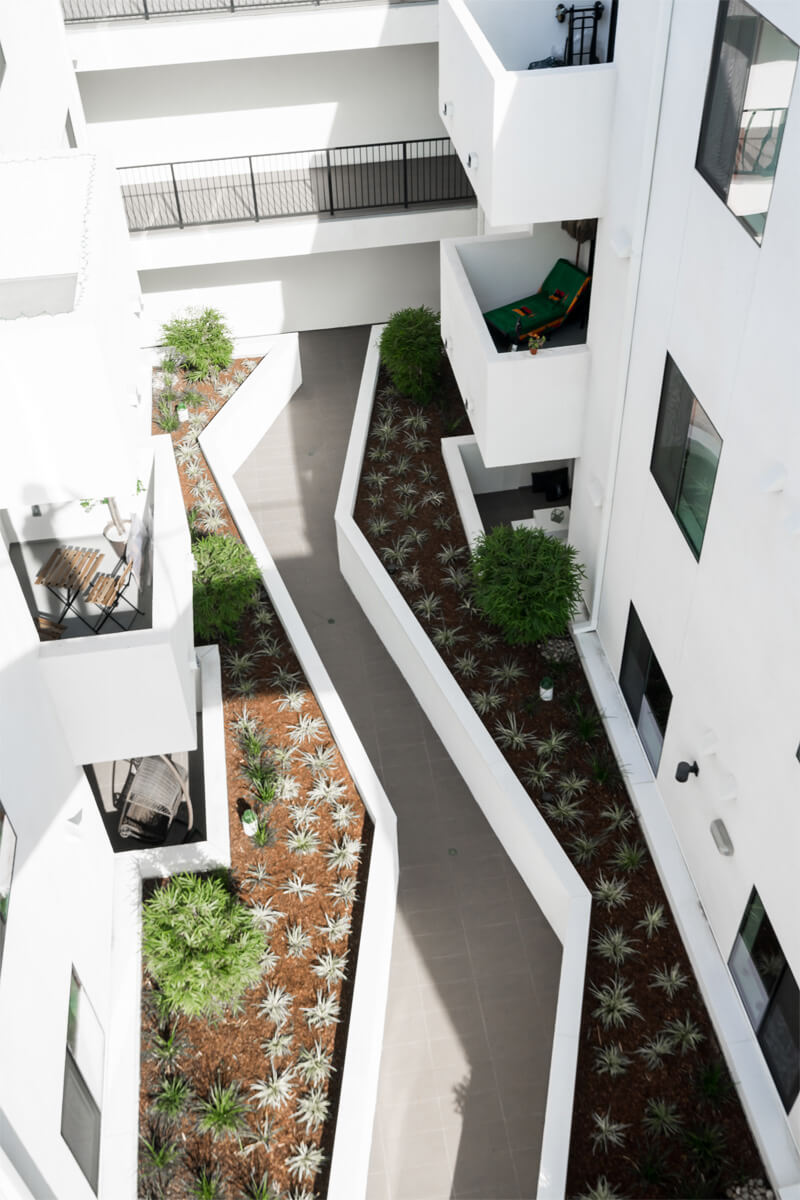

5727_LaMirada-10
5727_LaMirada-6

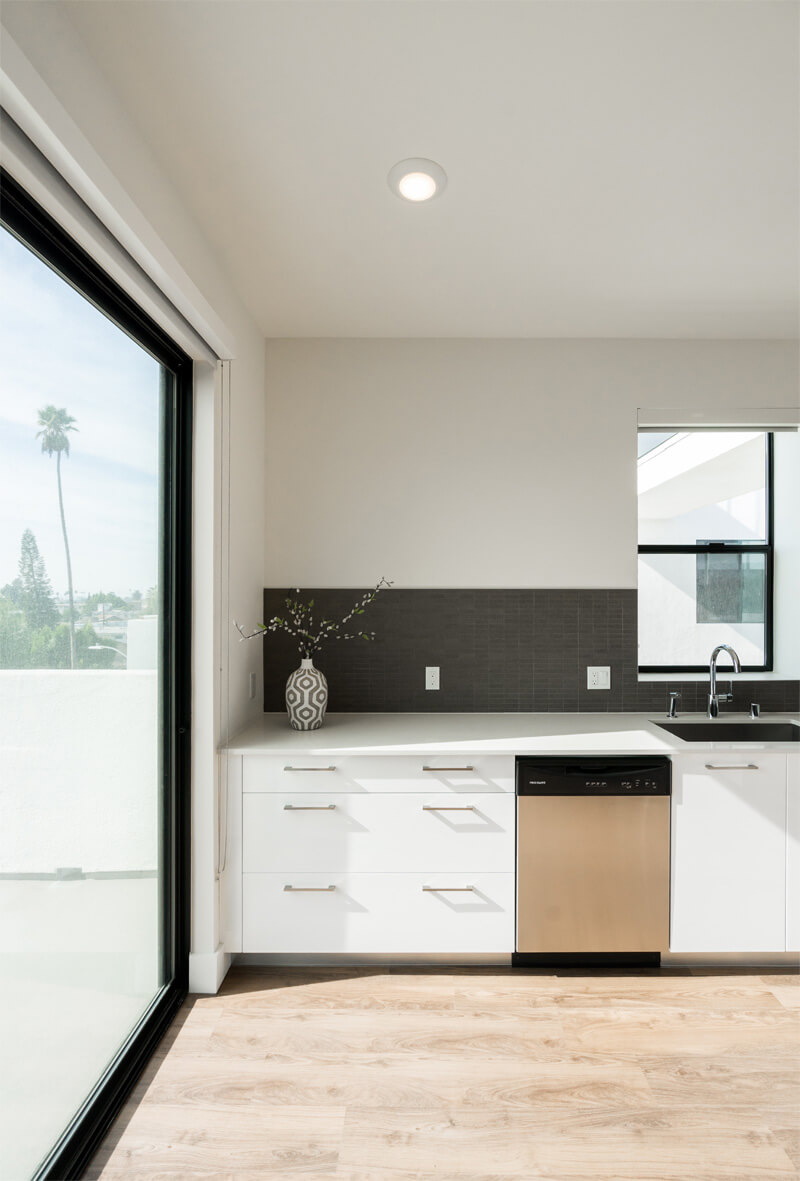

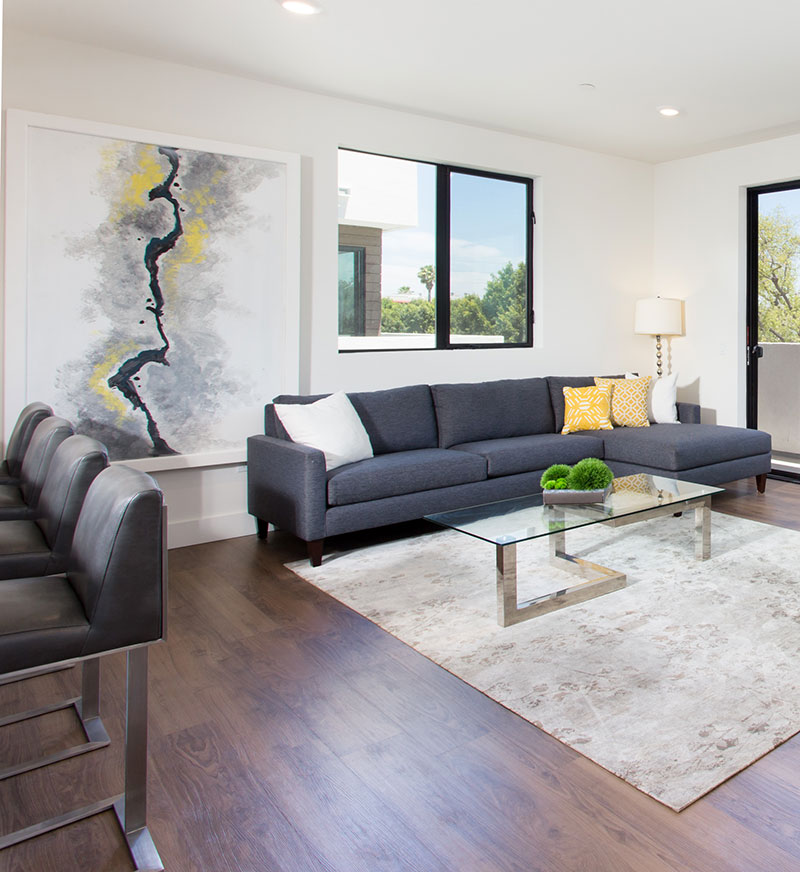

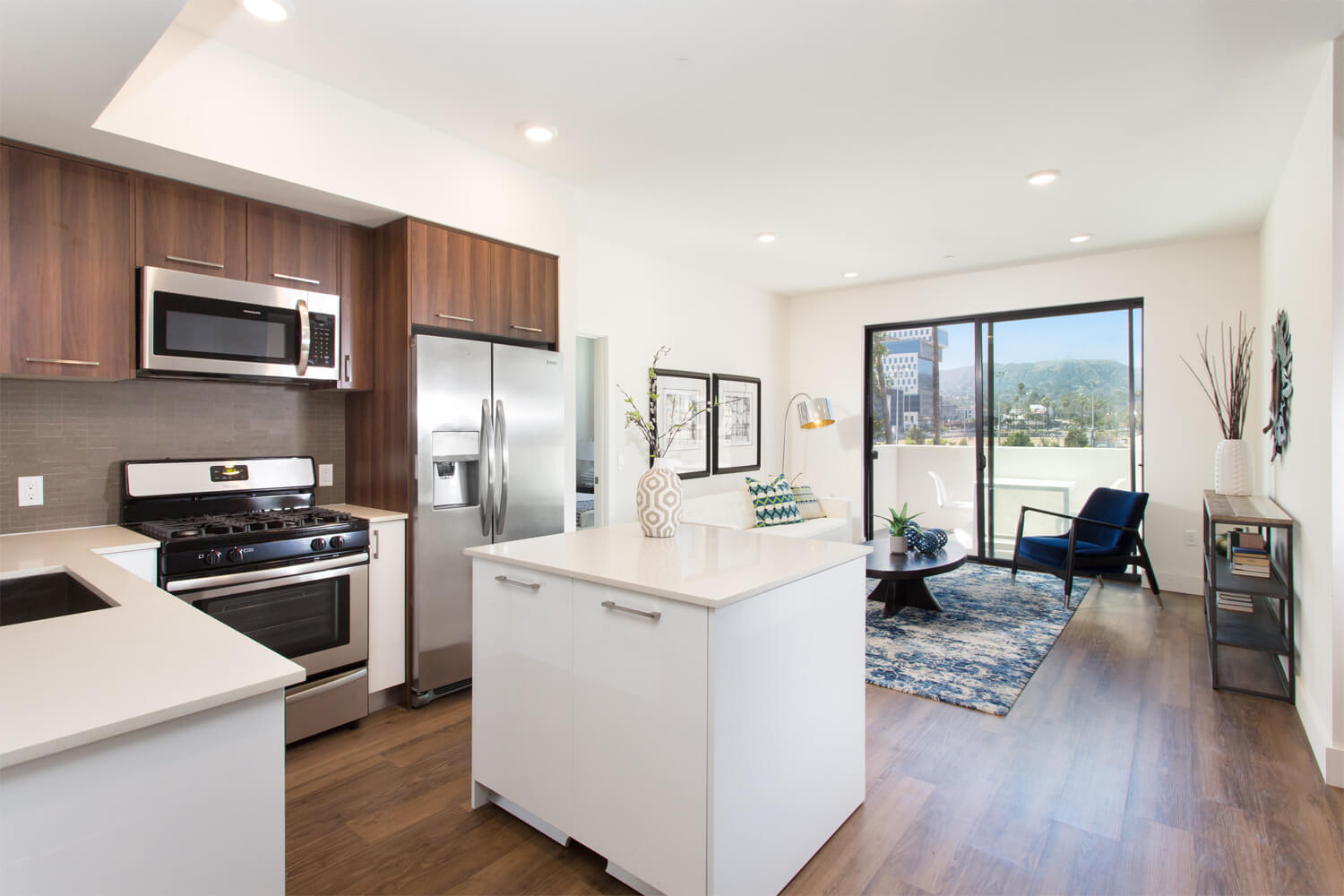

Units feature custom cabinetry, wooden floors, and gorgeous granite countertops. Recessed lighting and stainless-steel kitchen appliances provide comfort and ambiance, while Nest brand thermostats, secure entry and grated parking provide high-tech sustainability with safety and security.

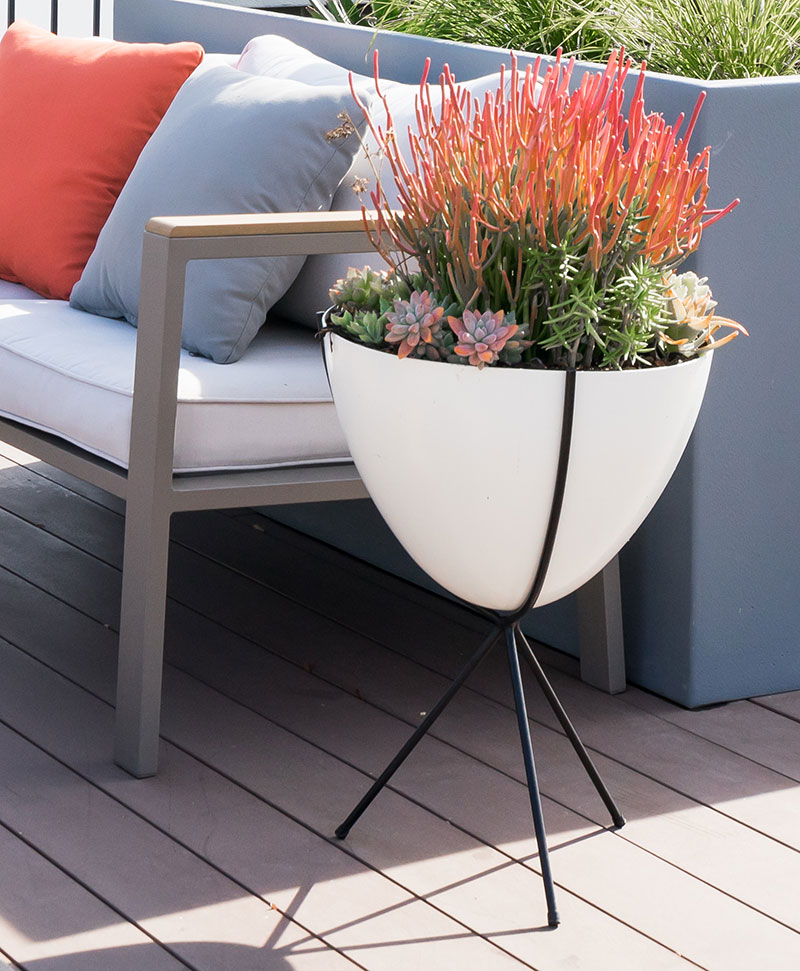

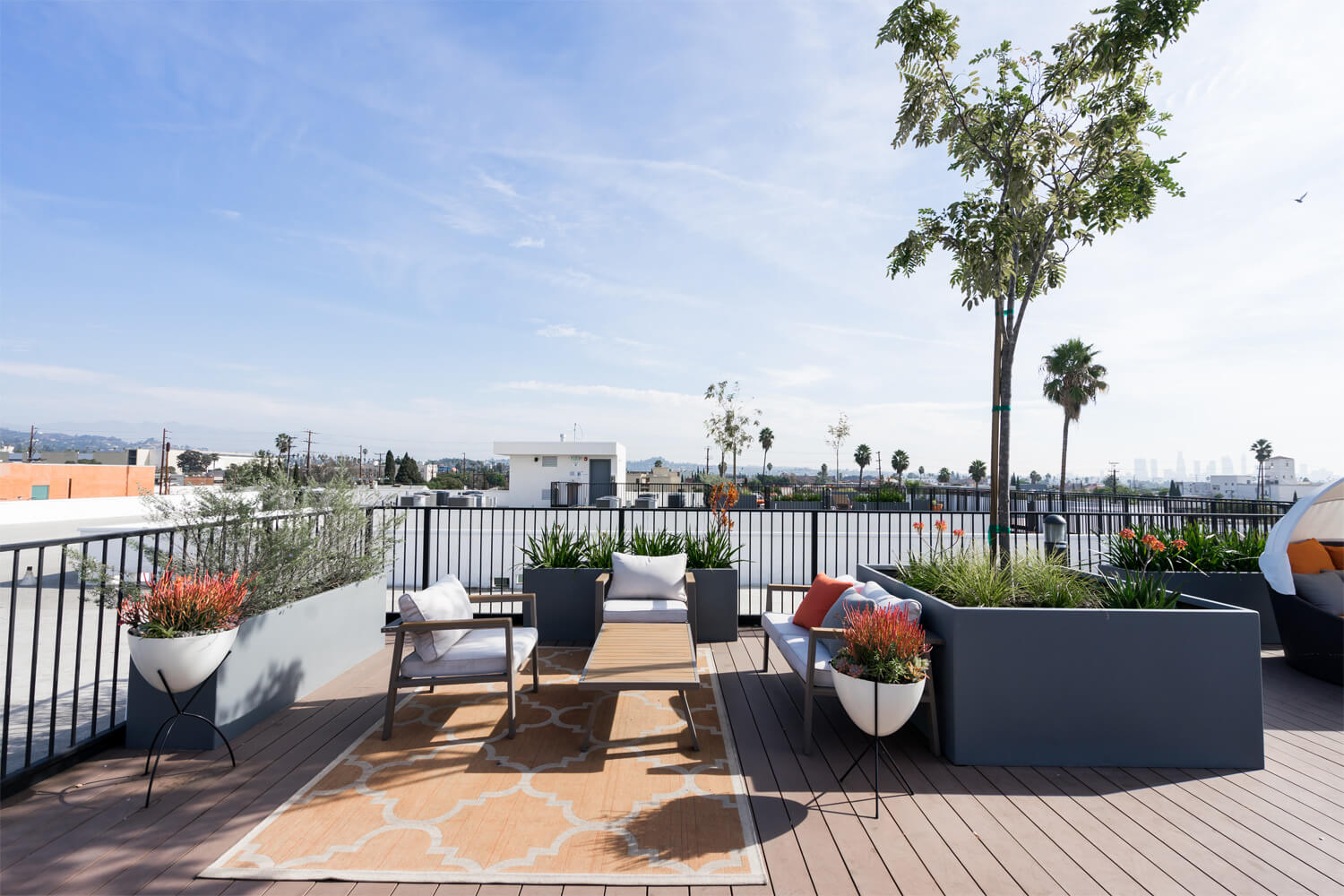

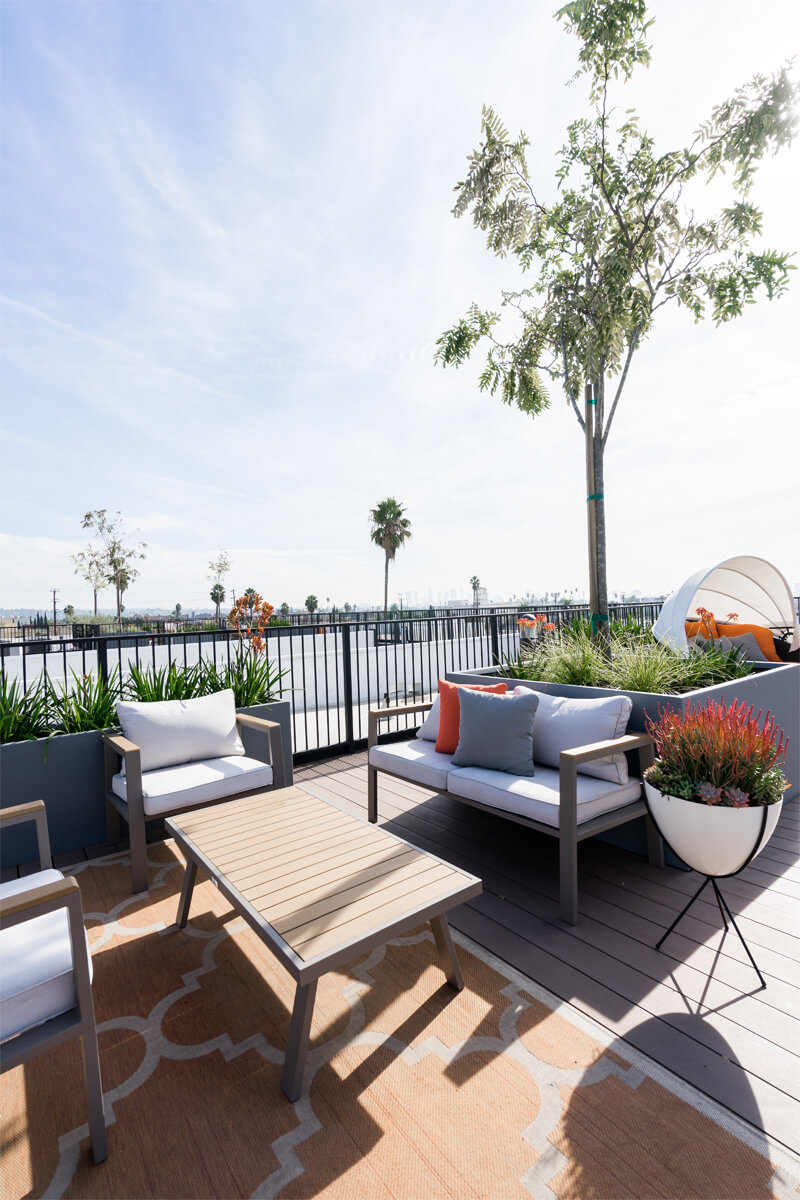

On the rooftop, an expansive deck provides Los Angeles sunshine, stunning nighttime cinematic views, and beautiful custom low-water planters. Expansive windows and generous balconies allow for an unmatched indoor-outdoor concept, keeping tenants immersed in one of the most exciting and high-energy locations in all of Los Angeles.

.

5727_LaMirada-8
5727_LaMirada-8

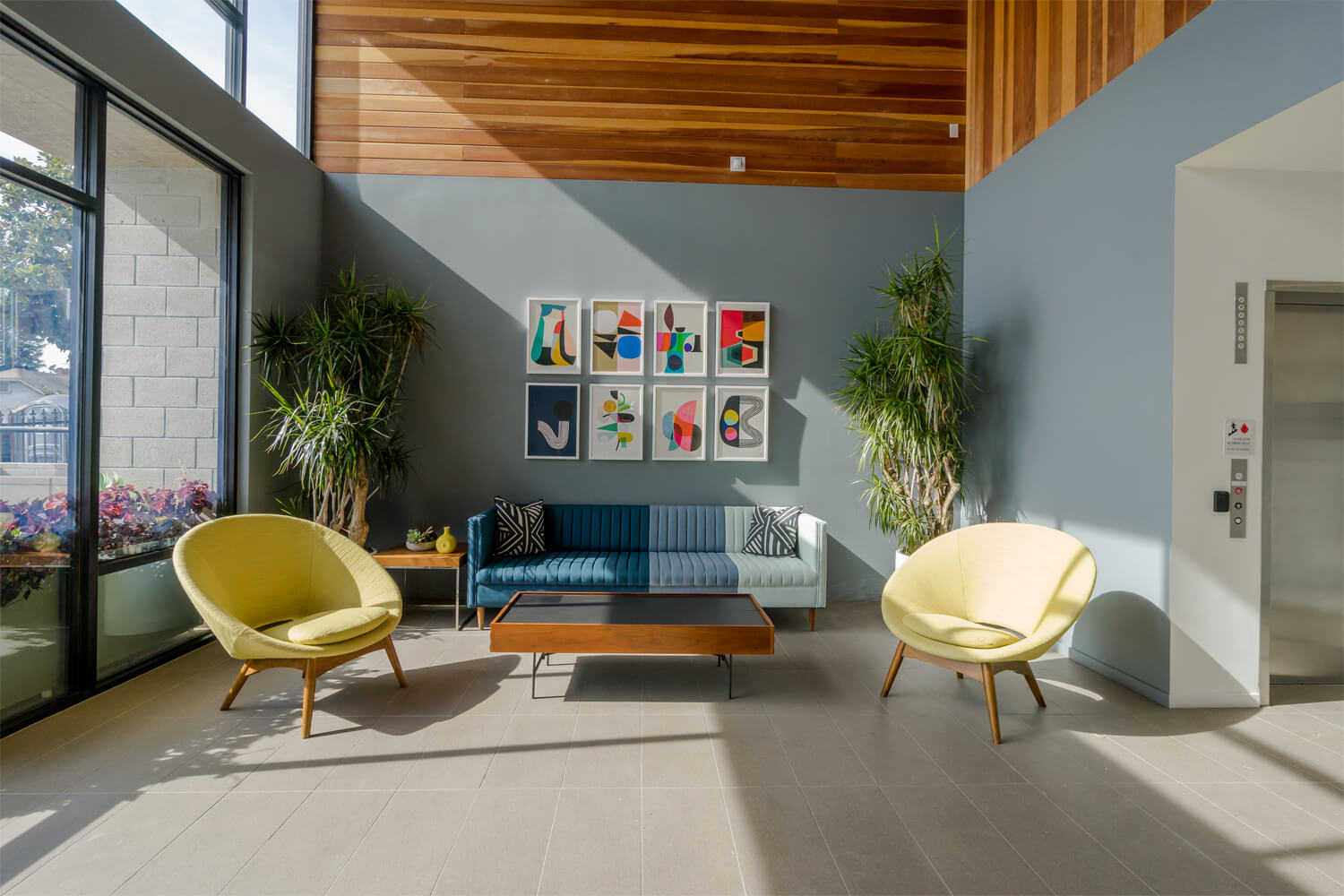

5727_LaMirada-27
Mirada_028
5727_LaMirada-8
5727_LaMirada-15

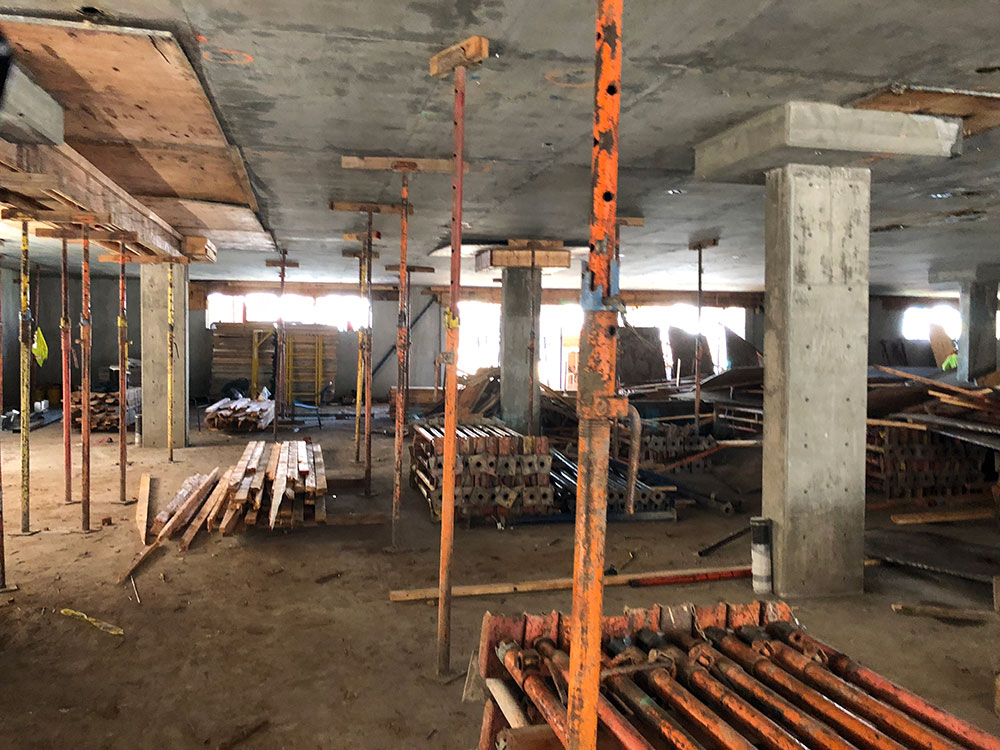

Construction Methodology

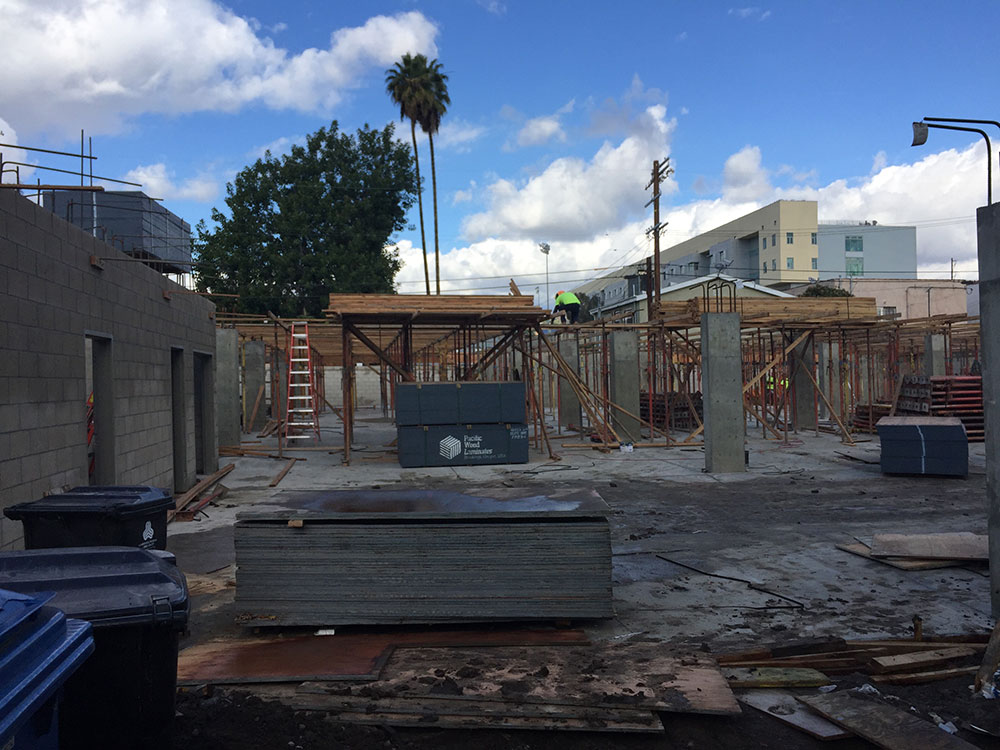

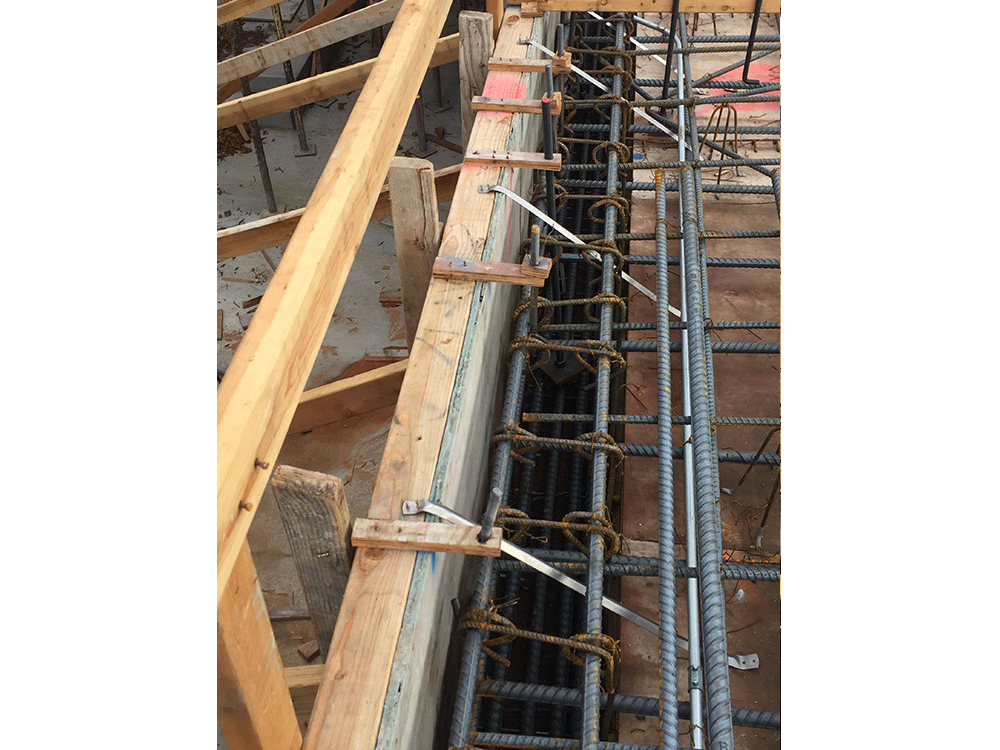

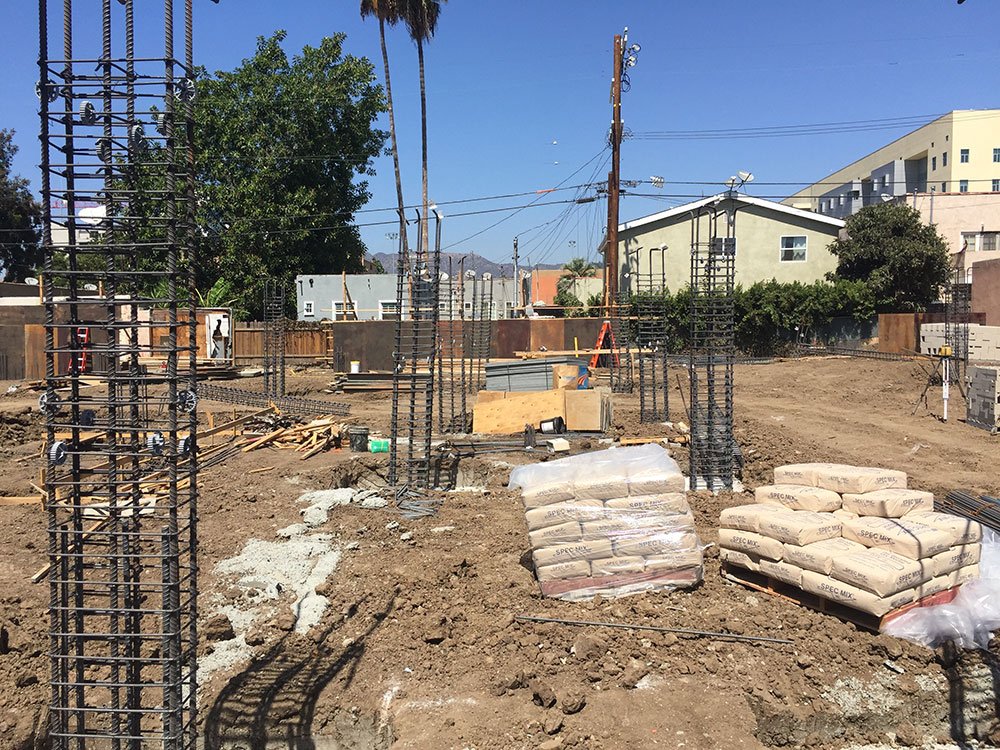

  • Shotcrete Building Walls

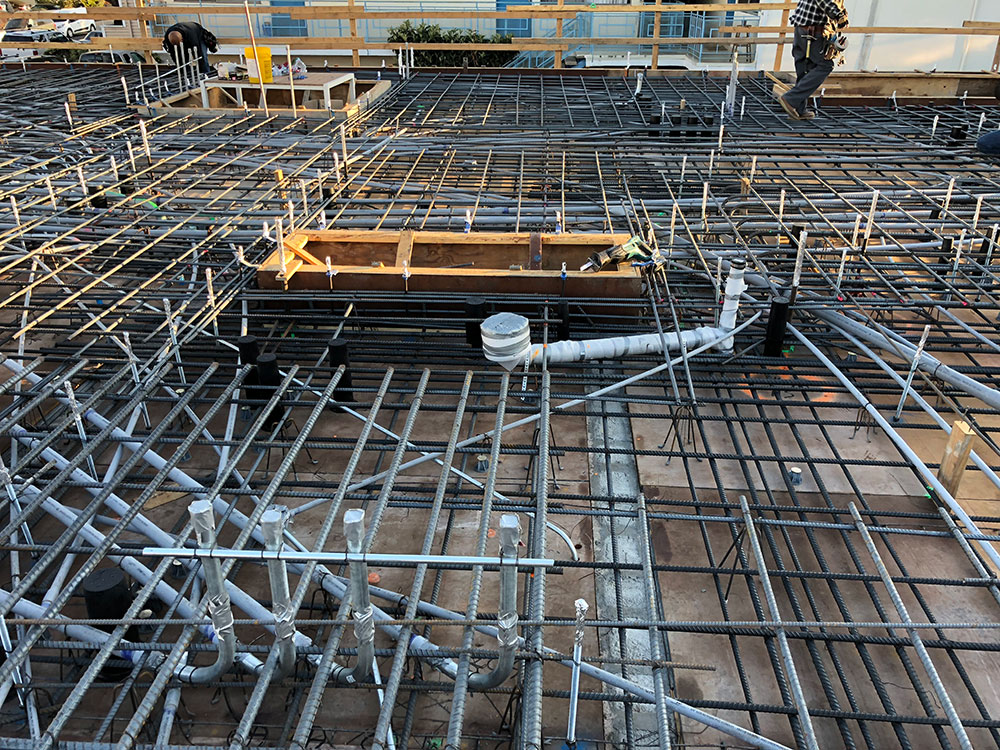

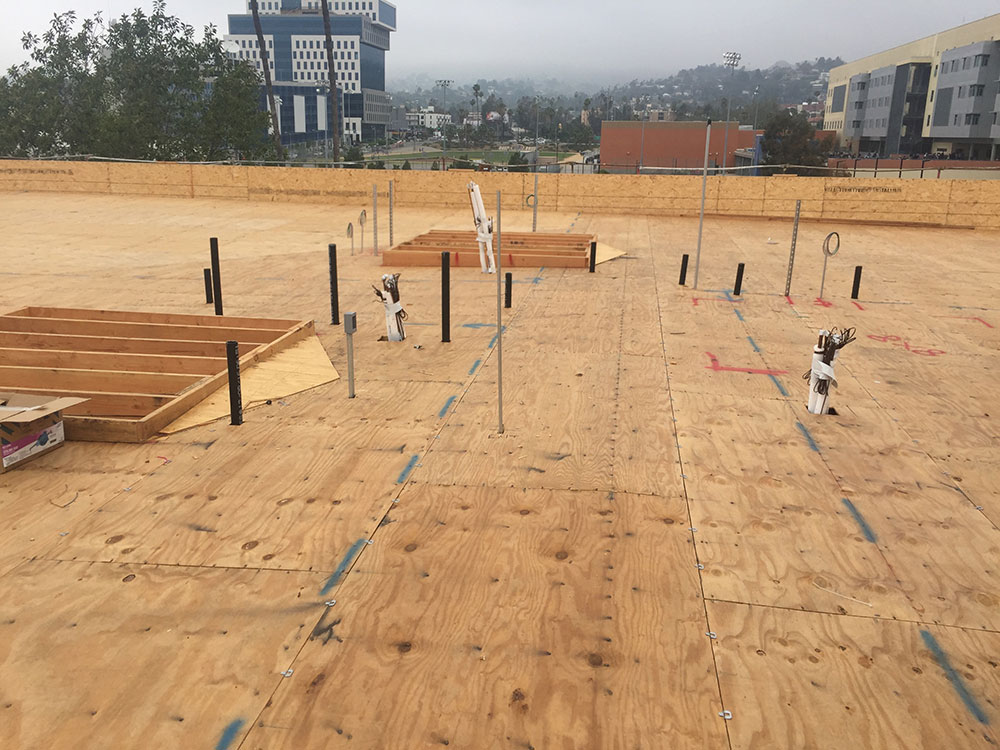

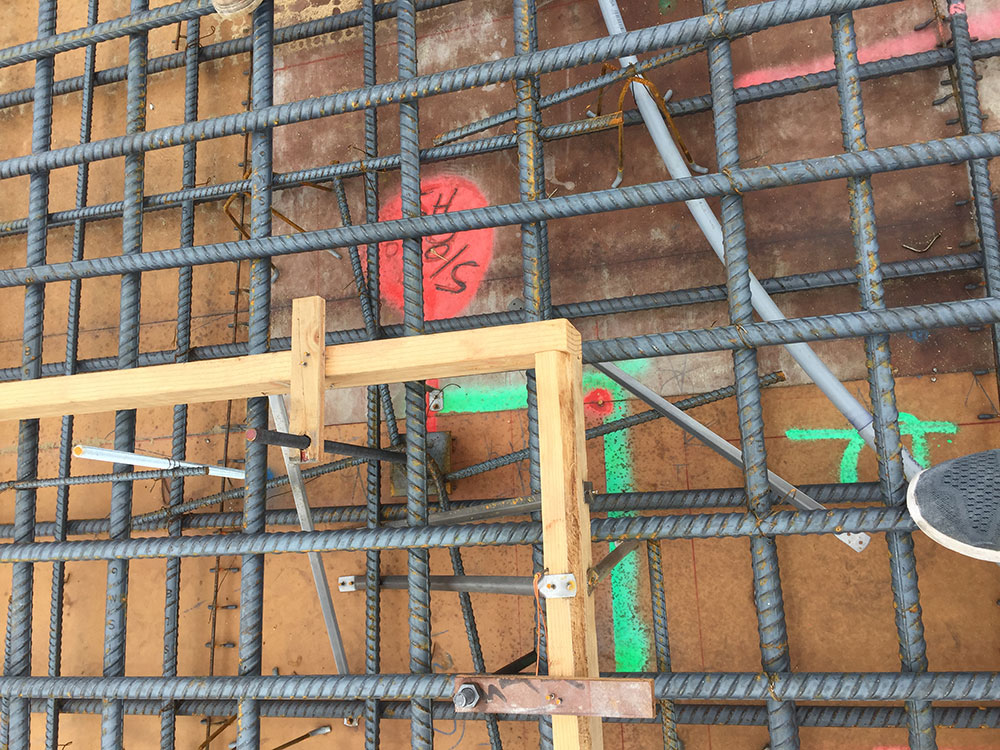

  • 12” Concrete Podium Deck with Hard Trowled Finish

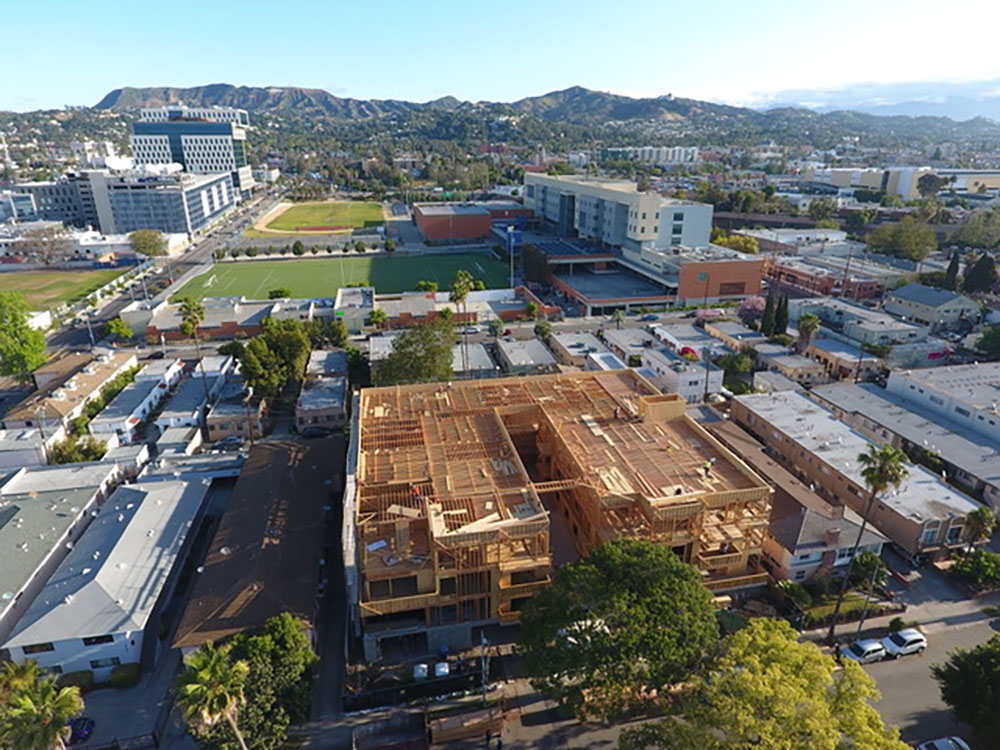

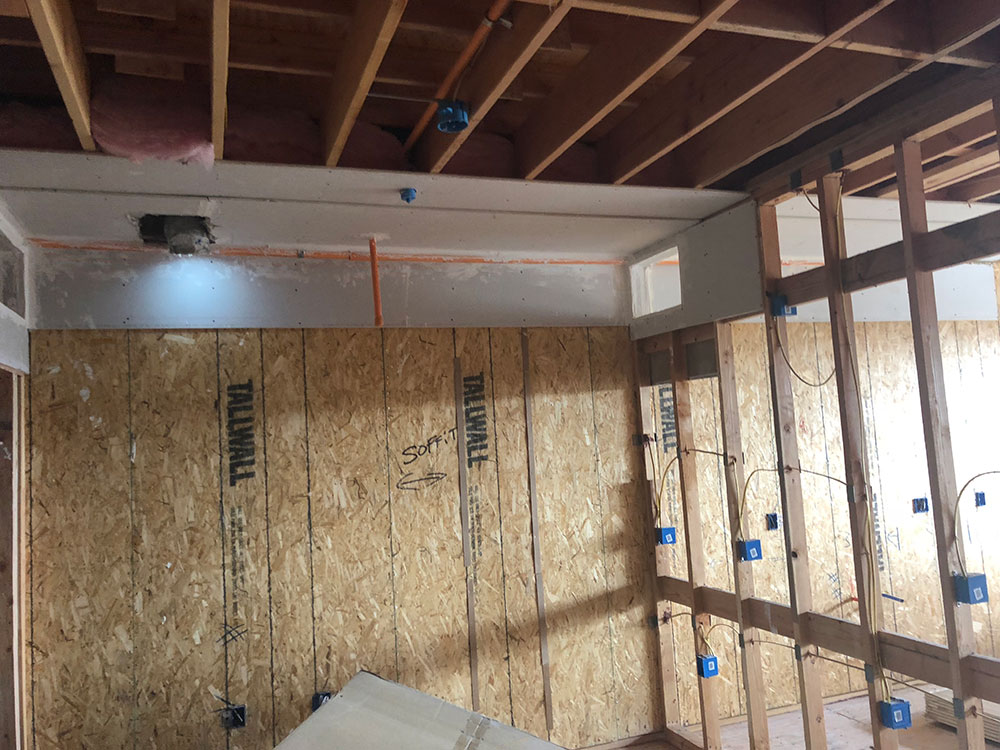

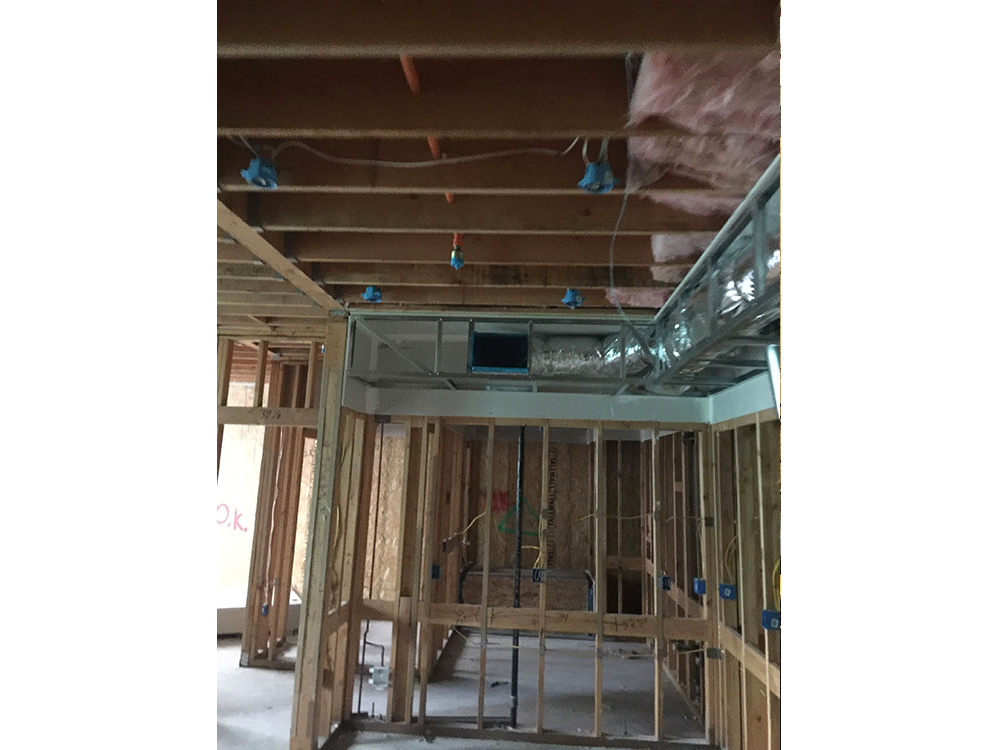

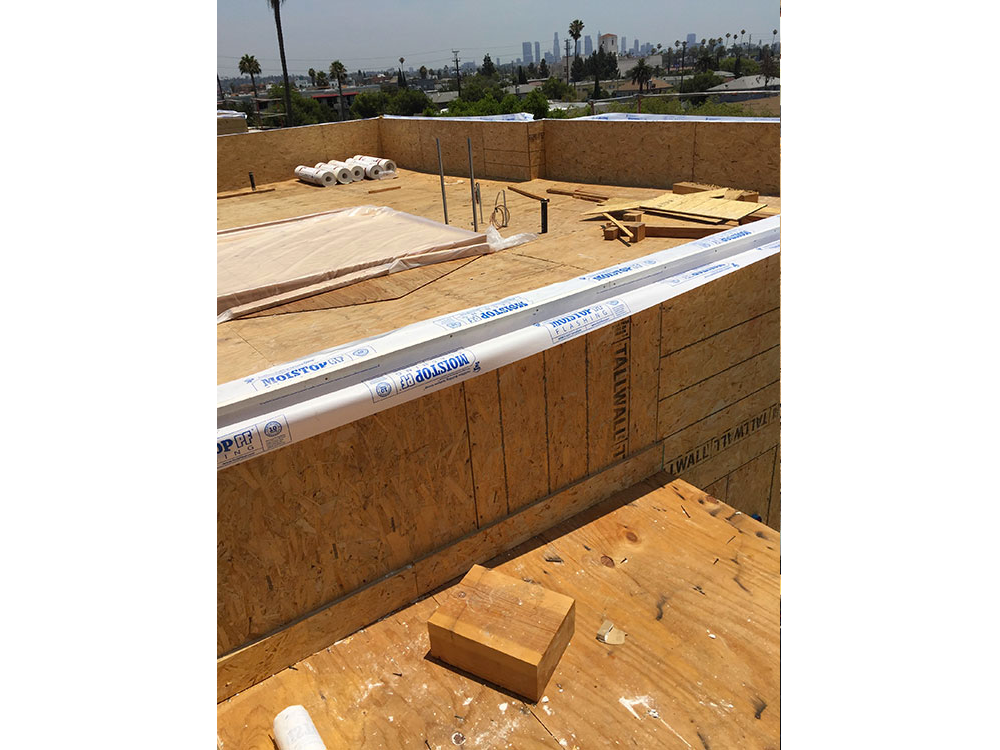

  • Type V Wood Framing
  • Simpson Anchor Tie Down System
  • Double 2” & 6” Demising Walls with 1” Off Set for Sound Mitigation
  • Unit Sub Flooring of Gypsum Firm Fill 2010+ with Accousti Mat 3
  • Dimond Blade Grind and Sand with Lithium Polish Sealer
  • Four Stop Hydro Electric Elevator

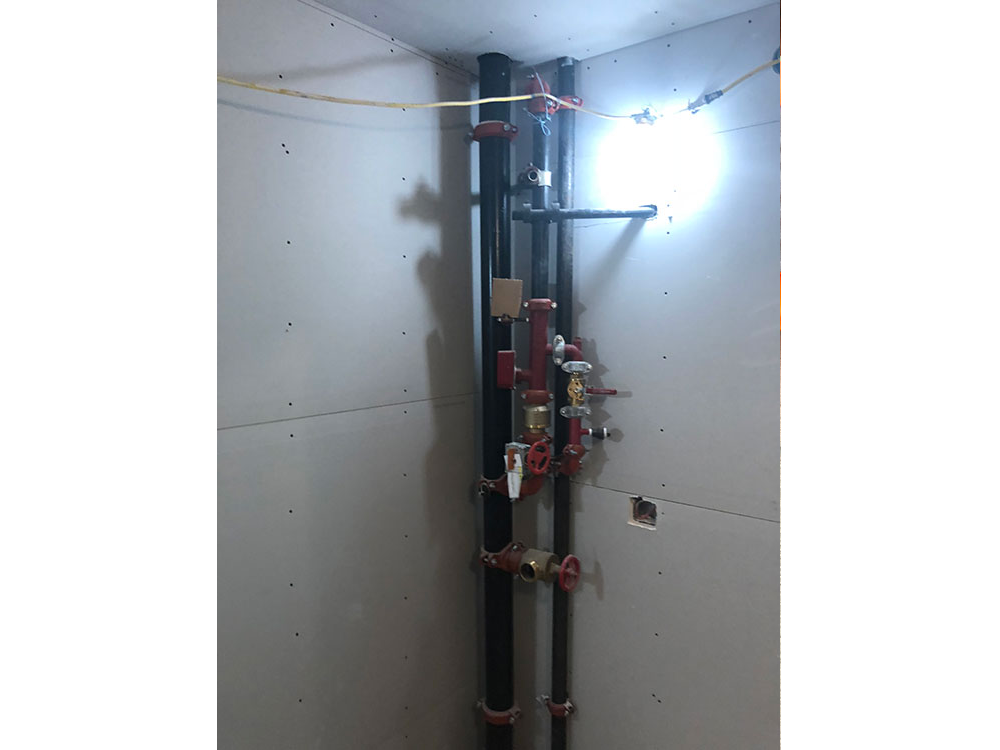

  • Multi Stand Pipe NFPA 13 Fire Sprinkler System
  • Urban Storm Water Mitigation

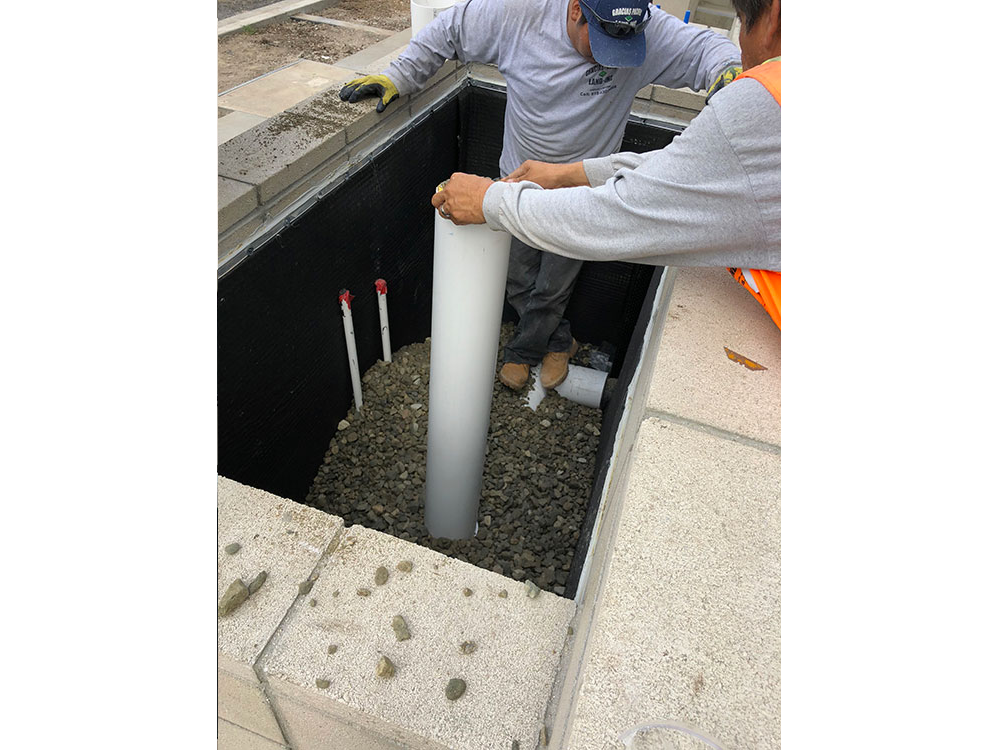

  • Bio Filtration Planters Low Impact Water Distribution
  • 1600 AMP Electrical Transformer
  • Single Gas Manifold
  • Single Boiler Water Heater with Recirculation System
  • DAS Bi-Directional Amplifier
  • ERRCS Annunciator Monitors
  • Vapor ShieldWater Proofing Membrane

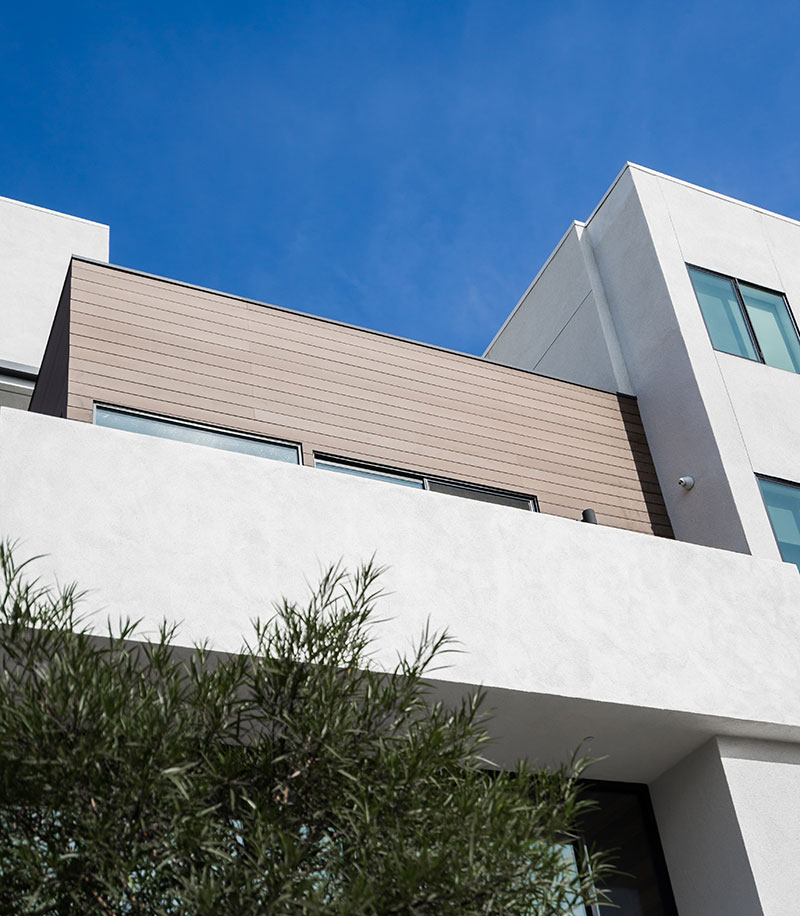

  • Cali Bamboo Wall Cladding

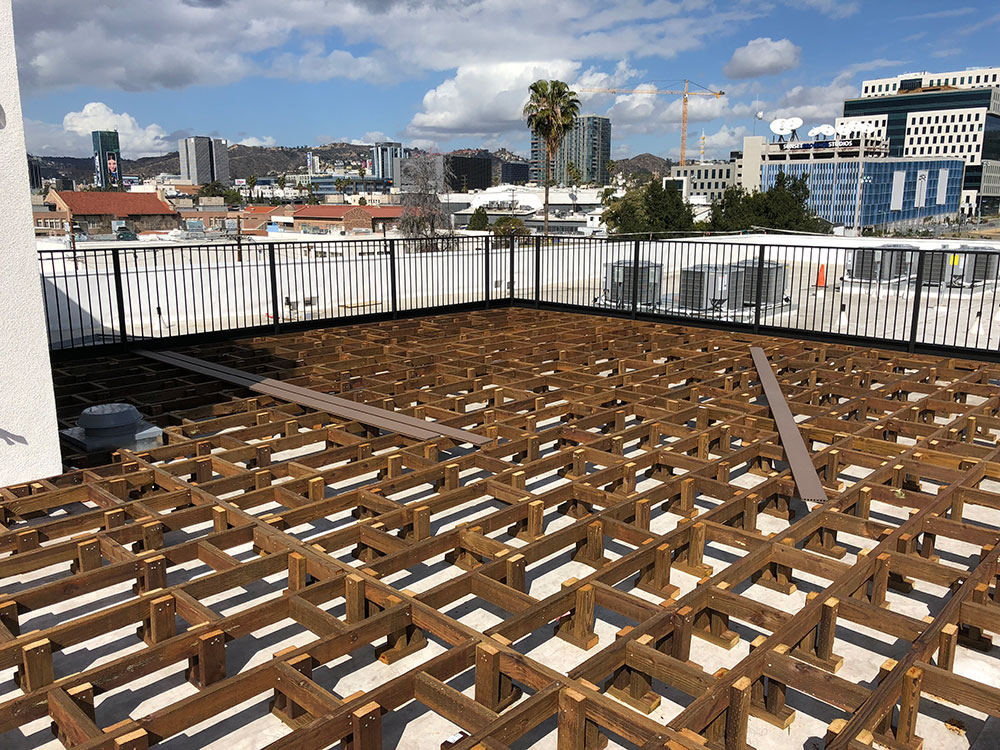

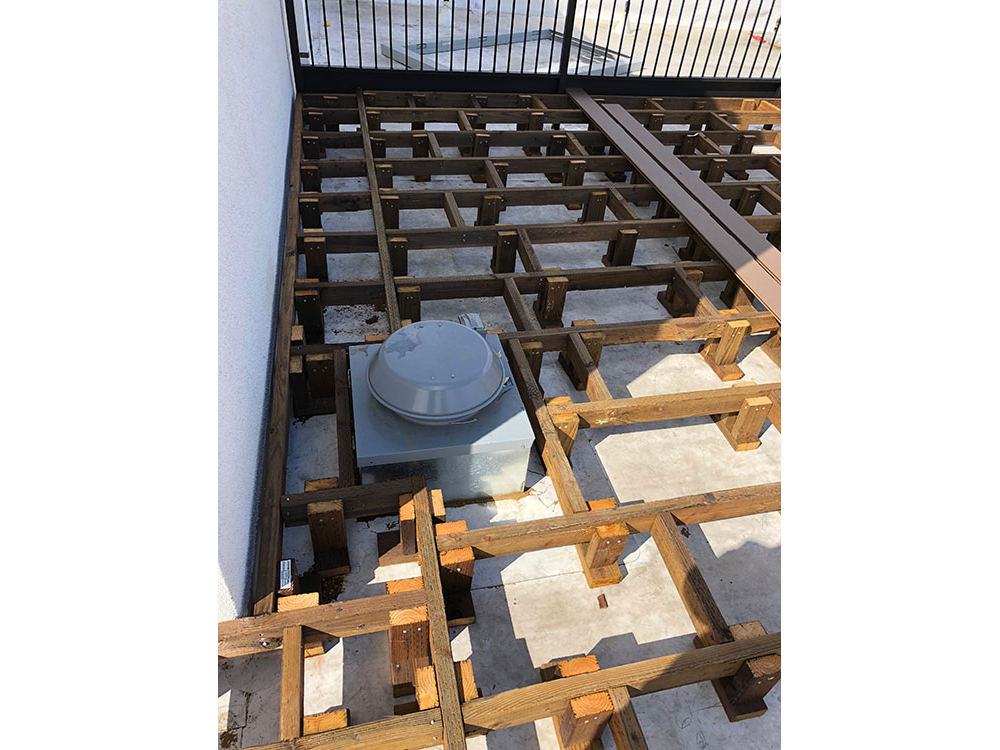

  • Elevated Cali Bamboo Wood Deck System
  • FOB Controlled Security Access
  • 12” & 16” OC Double Ceiling Joist For Sound Mitigation
  • Resilient Sound Isolation Clips
  • Sump Pump Water Filtration
  • Custom Wood and Steel Sliding Secured Garage Gate Entry

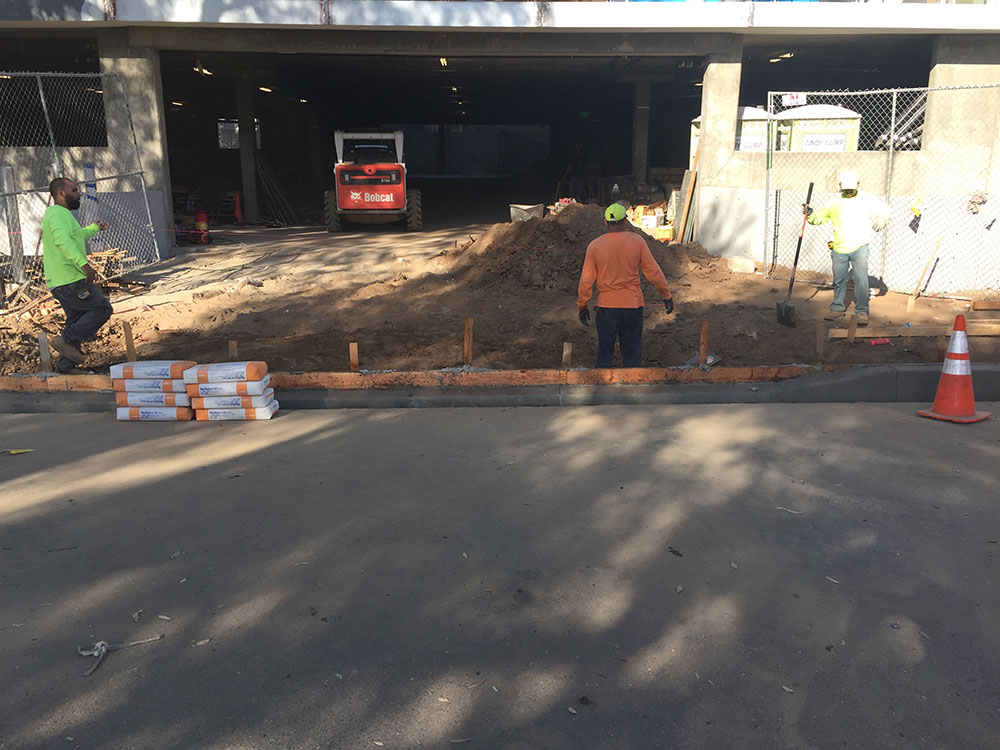

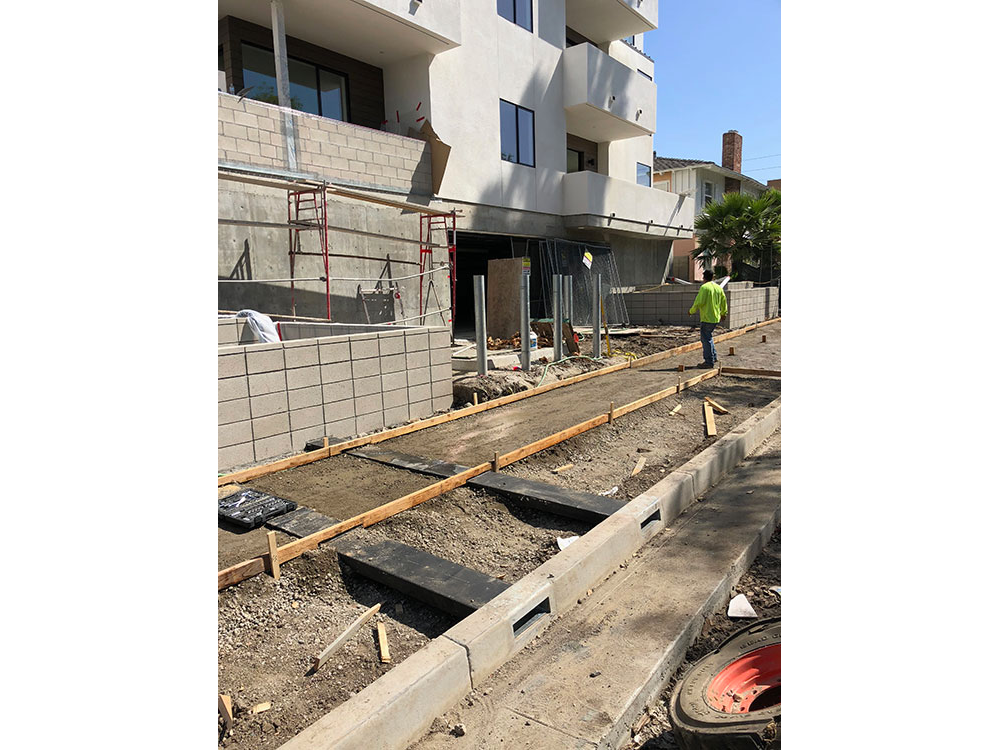

  • EcoCaste Poured Concrete Entry

Construction & Design

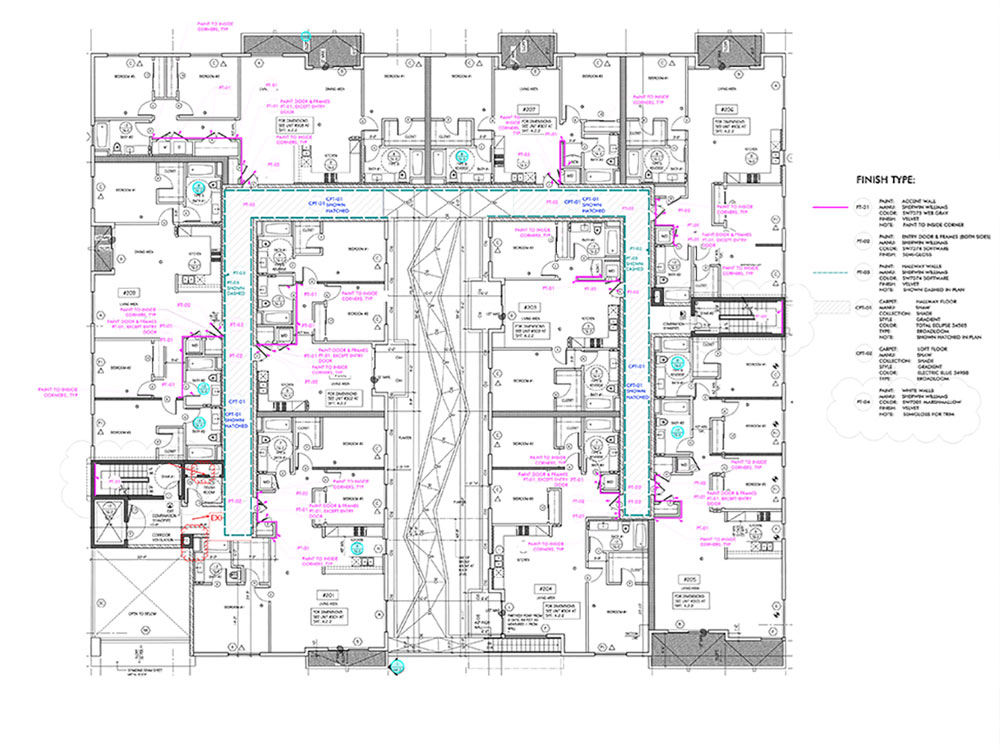

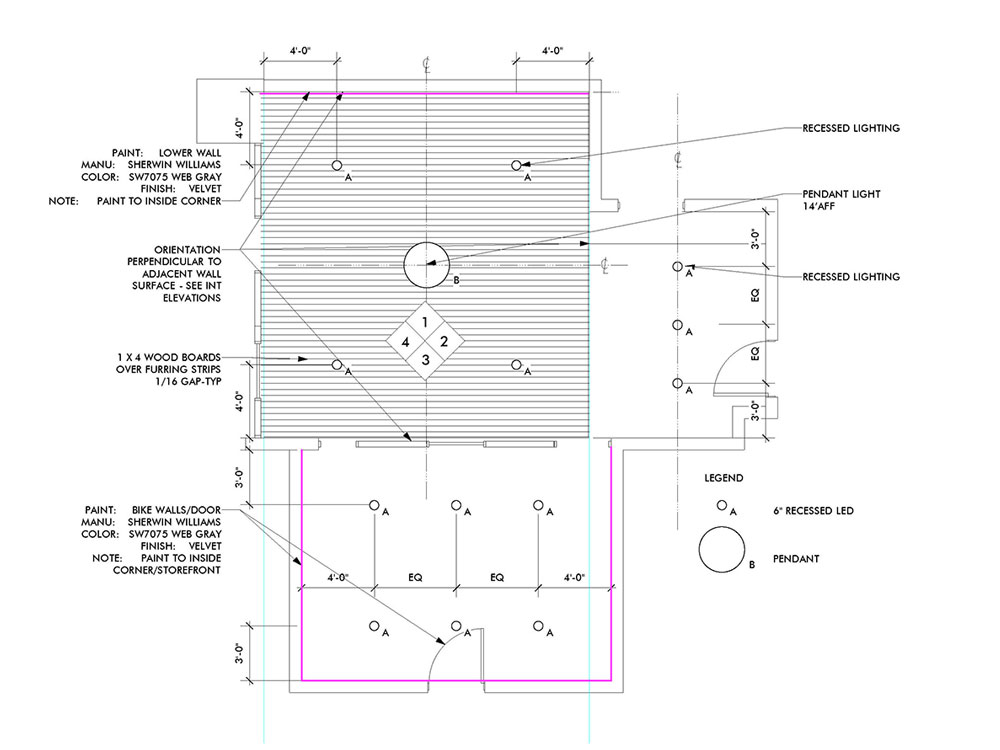

  • architecture drawings
